3L Lab Mini Spray Dryer Liquid Drying Machine Laboratory Food Grade Liquid Dry Equippment 220V 1PH

Product Overview: <br>The small-scale spray dryer is suitable for universities, research institutes, and industrial laboratories (food, pharmaceutical, and chemical) to produce micro-scale powdered particles. It has broad applicability for solutions such as emulsions and suspensions, and is ideal for drying heat-sensitive materials like biological products, bio-pesticides, and enzyme preparations (excluding organic solvents). Since the sprayed material is only exposed to high temperatures when atomized into fine droplets, the heat exposure is instantaneous, ensuring that the active ingredients remain intact after drying. <br> <br>Product Parameters: <br>Voltage: AC 220V <br>Phase number: 1 <br>Total power: 6.8KW <br>Inlet air temperature control: 30~300 ℃ <br>Outlet air temperature control: 30~140 ℃ <br>Evaporation water volume: 1500~3000 mL/H <br>Feeding capacity: 50~3000 mL/H <br>Average drying time: 1.0~1.5S <br>Fan: 0.55KW (Maximum air volume: 100m3/h; Maximum air pressure: 18KPa) <br>Air compressor: 1.1KW (Maximum gas production: 60L/min) <br>Working pressure of compressed air: 2~3 Bar <br>Nozzle diameter: 0.04" (1.00mm) <br>Operating temperature: 10~40 ℃ <br>Feeding method: Peristaltic pump regulation <br>Real-time temperature control (PID): ±1 ℃ <br>Real-time display temperature accuracy: 0.1 ℃ <br>Material: 304 stainless steel <br>Intended use: Biological laboratory, medical laboratory, microbiological laboratory, physical laboratory <br>Packing size: 41.7"*35.8"*61.4" (106cm*91cm*156cm) <br>Net weight/Gross weight: 264.5lbs (120kg) / 458.6lbs (208kg) <br> <br>Item Included(056797): <br>Spray dryer *1 <br>Accessory Kit *1

• ‌Constructed with 304 stainless steel, hygienic drying processes. Pneumatic two-fluid nozzle ensures uniform particle distribution (optional centrifugal nozzle), while the built-in oil-free air compressor.
• After the equipment is started, the spray process parameters can be set. Once the temperature reaches the preset level, the outlet air temperature remains stable for two minutes without rising, and the peristaltic pump is activated. The peristaltic pump speed and feed rate can be adjusted through the touch screen, and the touch screen displays an animated interface, making the operation clear and intuitive.

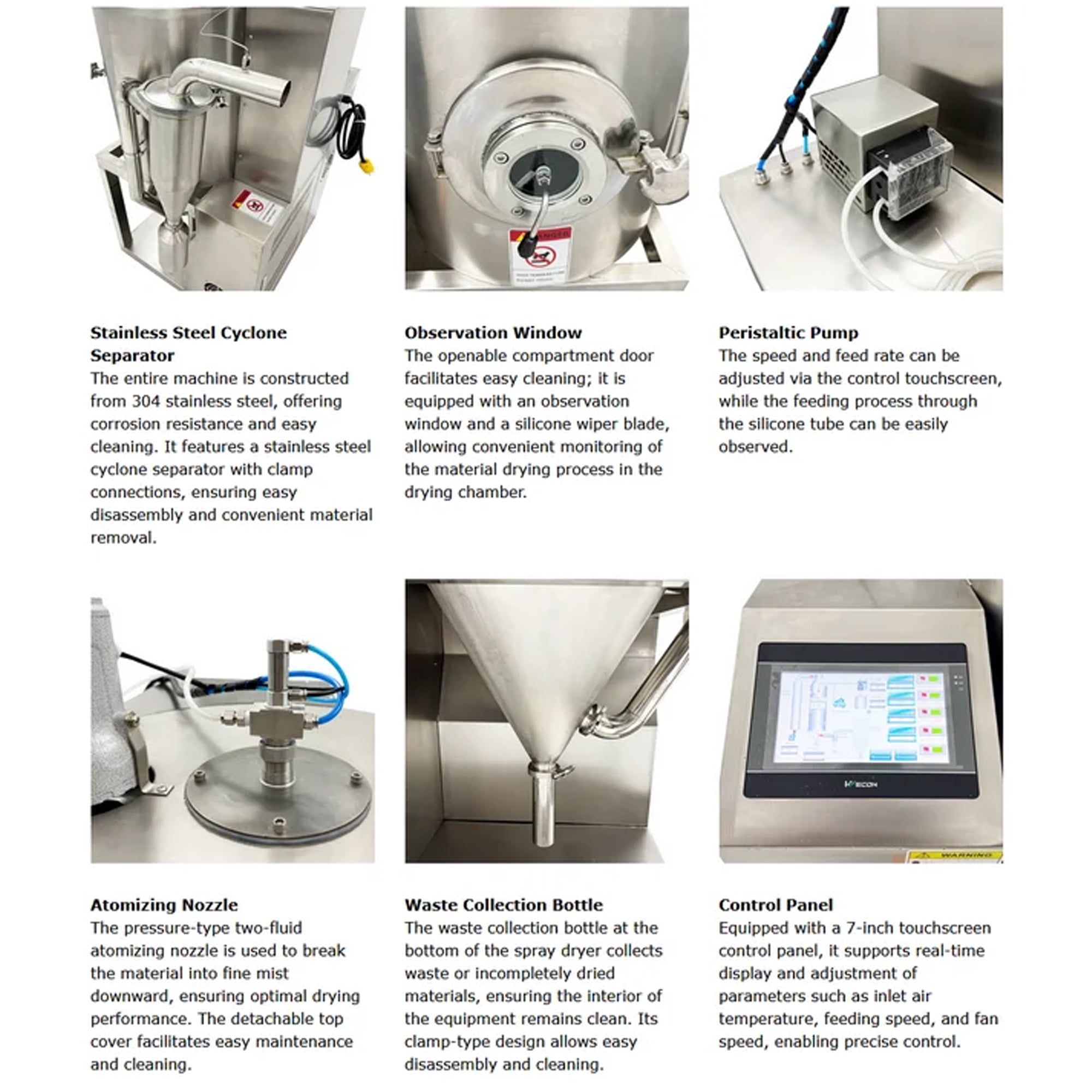

• The pressure-type two-fluid atomizing nozzle has a high spraying efficiency, and the nozzle will crush the material downward into a fine mist to ensure the best drying performance. At the same time, it is equipped with an automatic dredging device with adjustable frequency and a removable top cover for easy maintenance and cleaning, so as to avoid clogging of viscous materials. Built-in oil-free air compressor produces normally distributed particles with good fluidity.

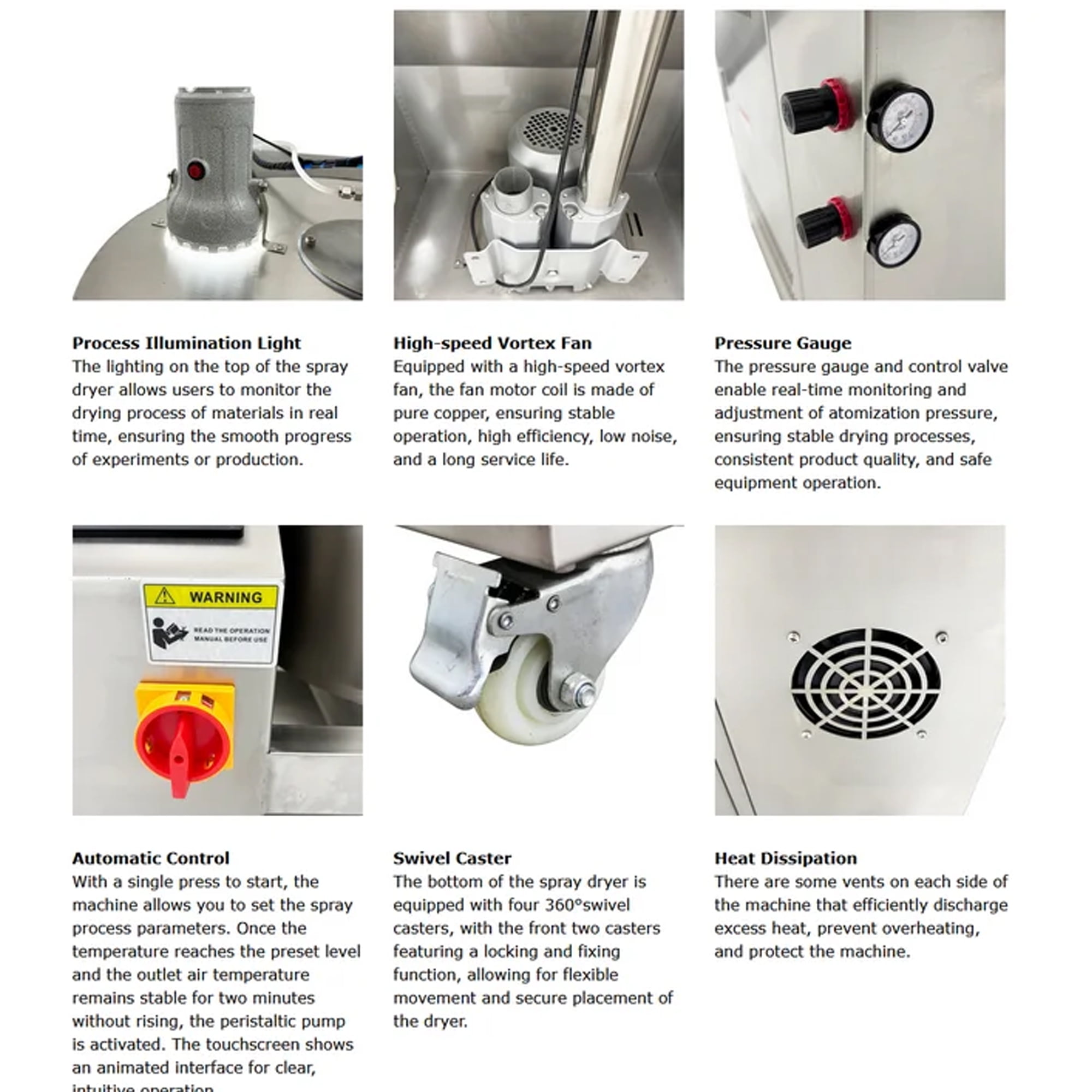

• The equipment is equipped with an observation window and silicone wiper, which is convenient for monitoring the drying process. The lighting on the top allows users to observe the drying of materials in real time. The transparent silicone tube of the peristaltic pump makes it more convenient to observe the feeding process.
• The laboratory food grade spray dryer has broad applicability for solutions such as emulsions and suspensions, it's ideal for drying heat-sensitive materials like biological products, bio-solution, and enzyme preparations (excluding organic solvents), suitable for universities, research institutes, and industrial laboratories (such as food and chemical) to produce micro-scale powdered particles.
