CHANCS DC 12V 5RPM Reversible Turbo Worm Motor Gearbox Motor with Bracket for Window Opener Mechanical Equipment
Product details
| Management number | 234135963 | Release Date | 2026/06/27 | List Price | US$14.40 | Model Number | 234135963 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

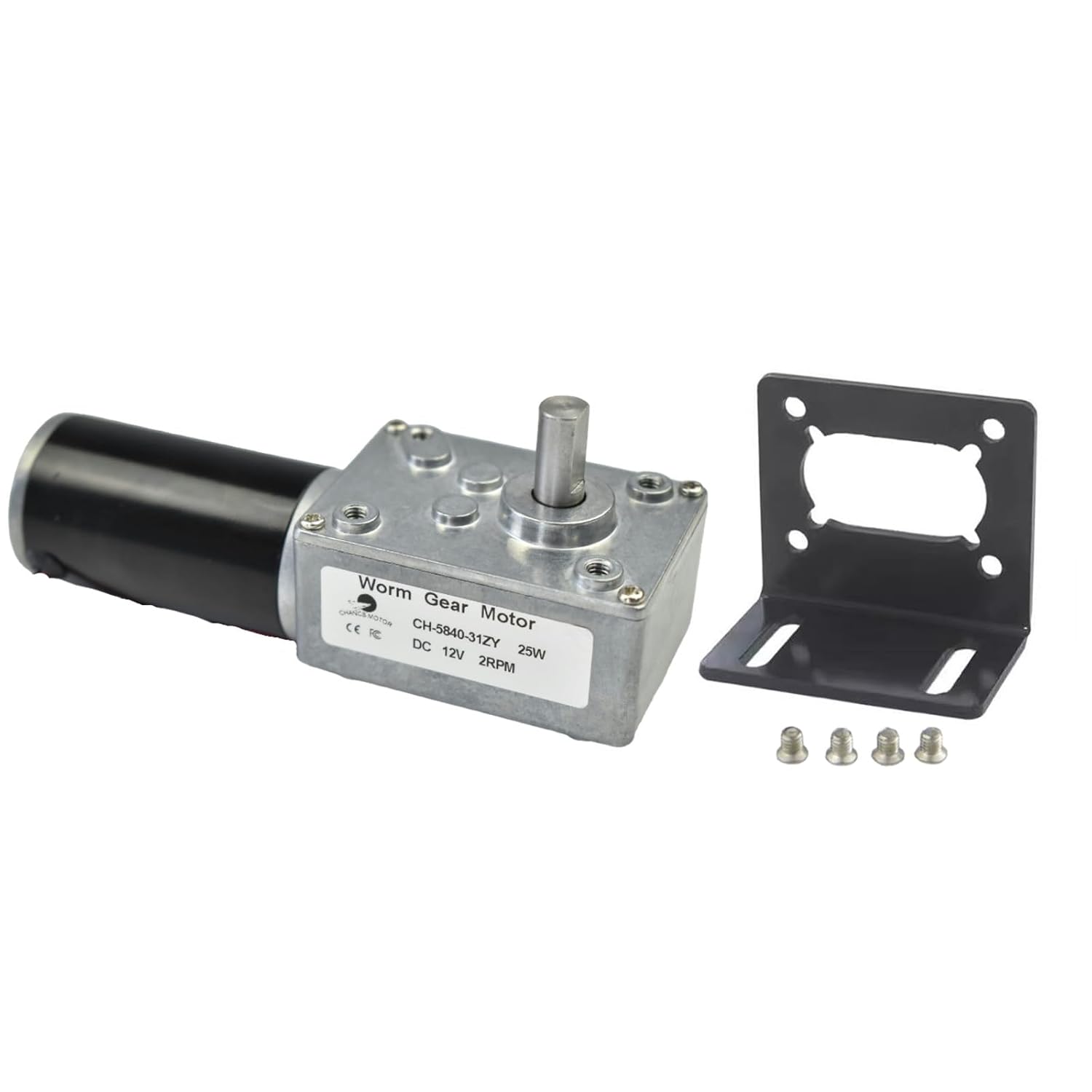

*Description:This is a combination of turbine motor and a mounting bracket, the bracket as an additional support for your motors or as an alternative mounting option. You can change the wiring of the motor positive or negative change the direction of rotation of the motor, using full metal gear, low noise, with self-locking function.Specification of motor: Voltage:DC 12V Reduction ratio:670 Maximum no-load speed:5RPM No-load current:0.08A Rated torque:30kg.cm Rated current:0.25A Rated input power:8W Ultimate load torque:60kg.cm Maximum load current:1A DC motor body dimensions:31 x 57mm (1.22" x 2.24") (D*L) Gearbox dimensions:58 x 40 x 27mm (2.28" x 1.57" x 1.06") (L*W*H) Output shaft dimensions:8*16mm (0.31" x 0.63") (D*L)*Specification of bracket:Size:50*56*37mm；Thickness：3mm; Material: high carbon steel; *Package: 1 x DC Worm Gear Motor, 1 x bracket, 4x screws. *Applications: automatic mahjong machines, vending machines, medical equipment, ATMs, robots, parking locks, electronic locks, smart home, automation industry, automotive parts, office automation, curtain machines, etc.
- *Description:This is a combination of turbine motor and a mounting bracket, the bracket as an additional support for your motors or as an alternative mounting option. You can change the wiring of the motor positive or negative change the direction of rotation of the motor, using full metal gear, low noise, with self-locking function.
- Specification of motor: Voltage:DC 12V Reduction ratio:670 Maximum no-load speed:5RPM No-load current:0.08A Rated torque:30kg.cm Rated current:0.25A Rated input power:8W Ultimate load torque:60kg.cm Maximum load current:1A DC motor body dimensions:31 x 57mm (1.22" x 2.24") (D*L) Gearbox dimensions:58 x 40 x 27mm (2.28" x 1.57" x 1.06") (L*W*H) Output shaft dimensions:8*16mm (0.31" x 0.63") (D*L)
- *Specification of bracket:Size:50*56*37mm；Thickness：3mm; Material: high carbon steel;
- *Package: 1 x DC Worm Gear Motor, 1 x bracket, 4x screws.
- *Applications: automatic mahjong machines, vending machines, medical equipment, ATMs, robots, parking locks, electronic locks, smart home, automation industry, automotive parts, office automation, curtain machines, etc.
| ASIN | B0GY8F37CW |
|---|---|
| Model | ZY31584012005-BH |
| Brand Name | CHANCS |
| Part Number | ZY31584012005-BH |
| Manufacturer | CHANCS MOTOR |
| Included Components | NO |
